NOTAMs Explained: How Aviation Safety Notices Shape Every Flight, From Runway Closures to GPS Jamming Warnings

Notices to Airmen or Missions (NOTAMs) are time-critical safety advisories broadcast by aviation authorities, including the FAA and Eurocontrol, to inform pilots of temporary hazards, airspace changes, and unserviceable facilities not known far enough in advance to appear on permanent aeronautical charts. Issued continuously across global airspace networks, they cover active runway closures, high-altitude military airspace restrictions, GPS signal jamming, and temporary construction cranes near runway thresholds.

The operational stakes of missed NOTAMs were demonstrated by a near-miss involving Air Canada Flight 759 at San Francisco International Airport (SFO). During a late-night approach, the Airbus A320 lined up on a taxiway occupied by four fully loaded passenger aircraft instead of its assigned runway, coming within 14 feet (4.3 metres) of a collision. Investigators from the National Transportation Safety Board (NTSB) found that the notice declaring the parallel Runway 28L closed was buried on page eight of a 27-page briefing packet, hidden beneath low-priority advisories.

The NOTAM system dates to distribution channels established in 1947. Raw feeds remain heavily coded and difficult to interpret despite regulatory modernisation efforts, and on long-haul international flights, pre-flight briefing packages regularly exceed 30 pages of densely packed teletype text. An example cited is an unlit 300 ft (91.4 m) crane near a runway centreline that could be buried among routine administrative notices.

Graphical tools now convert raw text advisories into visual overlays. At the technical core is the Aeronautical Information Exchange Model (AIXM 5.1), an international standard developed by ICAO and Eurocontrol that replaces unstructured text strings with structured geospatial data and temporal validity periods. Using this standard, advisories such as a temporary flight restriction below 18,000 ft (5,486 m) or a training zone extending six nautical miles (11.1 km) around a facility can be rendered as colour-coded polygons on an interactive radar display.

A concrete example of procedural alerting appears at France's Saint-Dizier-Robinson Air Base (LFSI), home base for French Air Force Dassault Rafale fighters. Geographic coordinates (48.6333, 4.8833) and a five nautical mile (9.3 km) boundary can be rendered graphically to signal active procedure changes at the airfield.

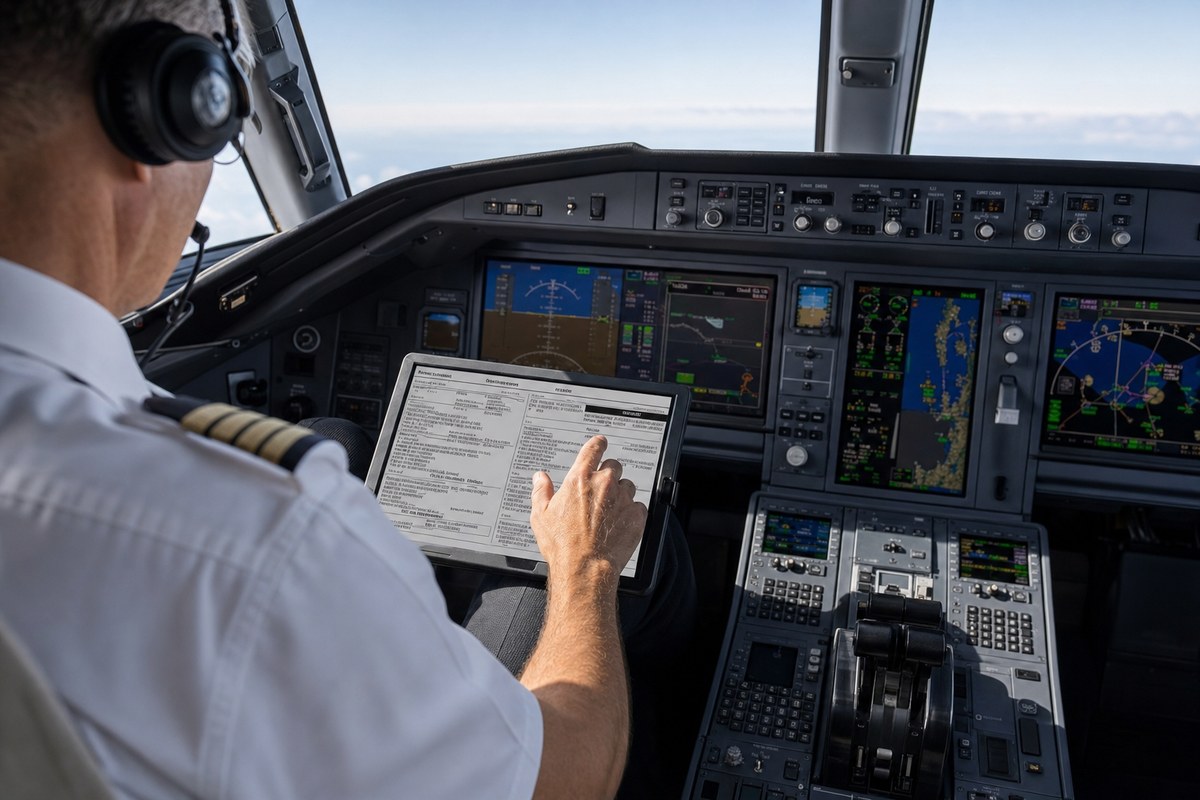

Flight crews and dispatchers manage the daily volume of safety updates using automated Electronic Flight Bag (EFB) software and computerised flight planning systems (CFPS) that match planned waypoints, altitudes, and diversion airfields against active NOTAM databases, flagging critical items such as an out-of-service Instrument Landing System (ILS) or an active missile hazard area.

When an unexpected notice shuts down a primary arrival runway at a major hub, such as London Heathrow (LHR) or New York JFK, the immediate consequence is reduced airspace capacity. Air traffic control increases separation distances, directing inbound flights into fuel-consuming holding patterns at designated entry waypoints up to 50 miles (80.5 km) from the airfield. Flight crews must then recalculate reserve endurance and decide whether to hold for 30 minutes or divert to an alternate airport.

The Air Canada case belongs to a broader category of incidents in which the safety data existed but was not surfaced to the people who needed it at the moment they needed it. A NOTAM system built on a decades-old distribution model produces a flat, chronological wall of text that treats a runway closure and a minor administrative note with the same visual weight, leaving prioritisation to a crew already managing an approach.

Graphical conversion standards like AIXM 5.1 address this by turning coded text into geospatial layers that can be filtered against a specific route, altitude, and time window, which is how a training-zone boundary or a temporary restriction becomes a shape on a display rather than a line buried in a packet. The value of this approach depends on adoption across the briefing tools that dispatchers and EFB software actually use, not on the existence of the standard alone.

What happens next in this space is whether structured-data briefing tools become the default rather than a supplementary layer atop the traditional text feed, since a hub-airport runway closure still forces the same holding-pattern and diversion calculus regardless of how the notice was displayed.
